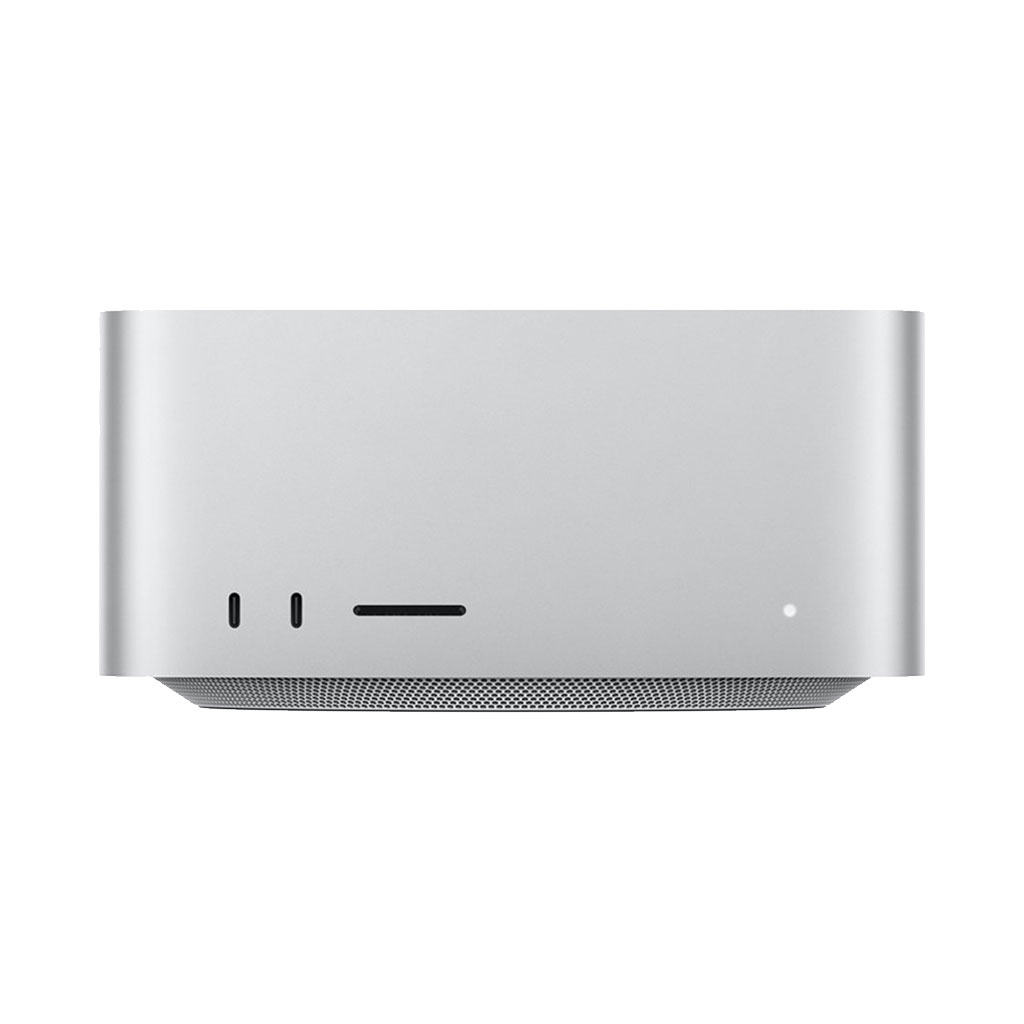

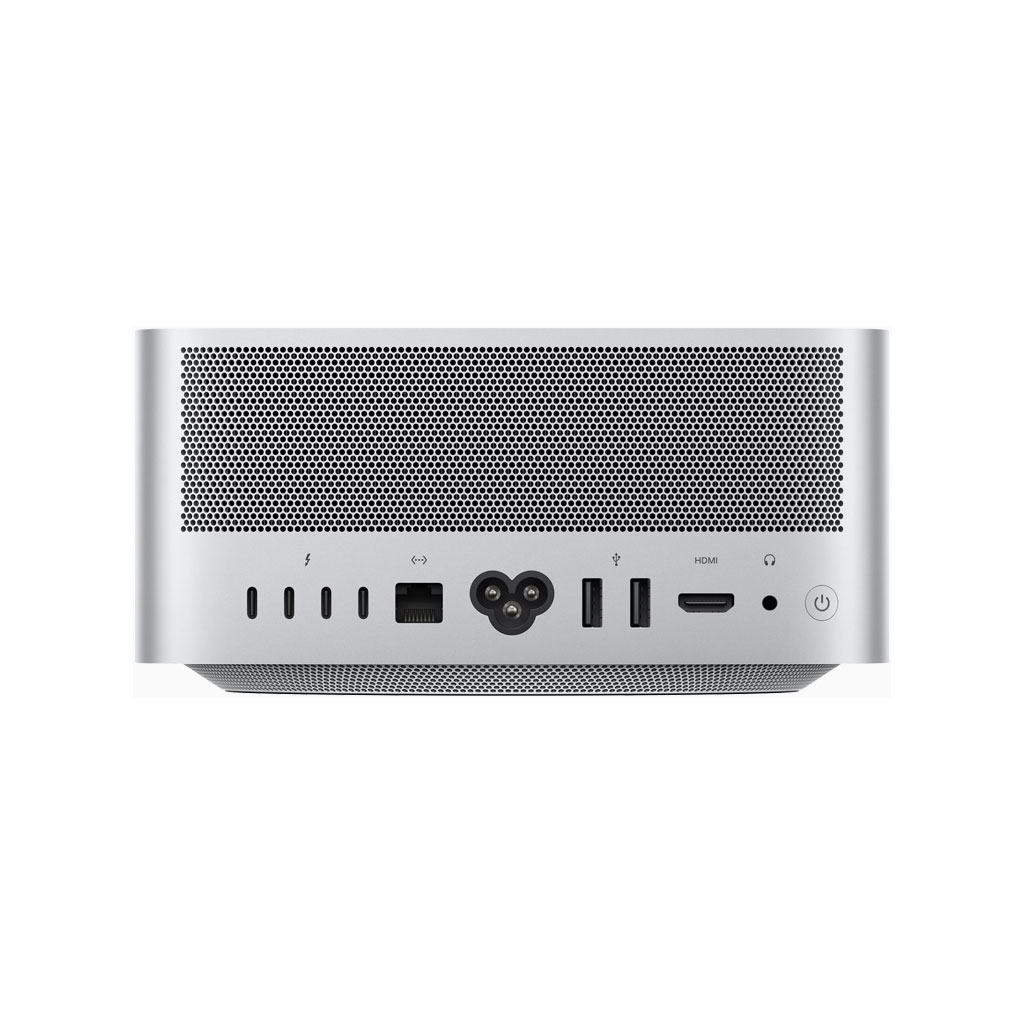

Apple Mac Studio with M4 Max Chip
Performance
- Apple M4 Max Chip
- 14-core CPU (10 performance cores + 4 efficiency cores)
- 32-core GPU with hardware-accelerated ray tracing
- 16-core Neural Engine
- 410GB/s memory bandwidth
- Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- One video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode support
- Configurable to: M4 Max with 16-core CPU, 40-core GPU, and 16-core Neural Engine (546GB/s memory bandwidth)
Memory
- Standard: 36GB unified memory
- Configurable to: 48GB, 64GB, or 128GB (with 16-core CPU & 40-core GPU)
Storage
- Standard: 512GB SSD
- Configurable to: 1TB, 2TB, 4TB, or 8TB SSD
Display Support
- M4 Max supports up to 5 displays simultaneously:
- Up to 4 displays with 6K resolution at 60Hz over Thunderbolt and 1 display with 4K at 144Hz over HDMI
- Or 2 displays with 6K resolution at 60Hz over Thunderbolt and 1 display with 8K at 60Hz or 4K at up to 240Hz over HDMI
Audio
- Built-in speaker
- 3.5mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Communications
- Wi-Fi 6E (802.11ax)
- Bluetooth 5.3
- 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, 10Gb using RJ-45 connector)
Size & Weight
- Height: 3.7 in (9.5 cm)
- Width: 7.7 in (19.7 cm)
- Depth: 7.7 in (19.7 cm)
- Weight (M4 Max): 6.1 lb (2.74 kg)
- Weight (M3 Ultra): 8.0 lb (3.64 kg)
In the Box
- Mac Studio
- Power cord
